Arya Communications & Electronics Services


MARINE SOLUTIONS

We are Sole Distributors for World renowned Uniden Marine VHF Radios. We are also Authorized Distributor, Service Providers and Co-developer for Digital Wireless market in India for Motorola having more than Two decades of experience in supply of Wireless Transceivers and related Accessories to various Government and Private Commercial organizations. We are the largest supplier of two-way radios in India for last many years to almost all State Police Departments, Ports, Defense, Para Military forces including Army, Navy, Airforce, Railways, Mines, Refineries, Aviation, Dept. of Space, PM Security, Refineries etc.

Uniden Holdings Corporation established February 7, 1966.Uniden created a sensation when introduced its line of cordless telephones to the U.S. in a campaign launched by pro golfer Jack Nicklaus. Since then, the Uniden brand has become synonymous with cordless telephones in the Global market. With the enormous telecommunication experience for more than 30 years, Uniden also started manufacturing CB Radios, Marine Electronics, GMRS Two Way Radios and Wide band Scanners.

Uniden is one of the largest sellers for marine radios worldwide with many satisfied customers on account of quality products at competitive prices. The offered radio equipment's are of marine grade and meets the international marine standard for Class D for DSC Operation and are compatible to IPX 7/ JIS7 for Water protection. Uniden Marine radio equipment's are being regularly supplied to various marine customers worldwide.

Trusted Name for Quality and Reliability

  • For over 54 years Uniden has stood for reliability and quality in consumer electronics across dozens of product categories at every major retailer in North America, Australia and New Zealand.

  • Uniden’s products are designed in Japan and produced in own factory in Vietnam. Uniden has good quality control system to guarantee quality and reliability.

Gender Neutral Awareness

  • Uniden’s diverse customer base starts with CB radios in the 1979’s and extends from the peak of cordless telephones in the 1990’s into today’s diverse product portfolio of security, communication, and automotive products.

Tamilnadu Fishries -Brief Success Story

The coastal Tamil Nadu was devastated by the monstrous South Asian Tsunami (2004) of December 2004, causing unprecedented loss of life and livelihood, brutally smashing the coastal hamlets in proximity. The fisher folk living along the coast line of 1076 km bore the brunt of Tsunami inflicting a loss of 7,995 human lives apart from leaving 3960 persons injured, 197 children orphaned, 561 women widowed and 945 people went missing.

In order to ensure safety & security of marine fishers while fishing, the World Bank has accorded sanction for implementation of project -FISHERIES MANAGEMENT FOR SUSTAINABLE LIVELIHOODS (FIMSUL II) covering all the coastal districts of Tamil Nadu under COASTAL DISASTER RISK REDUCTION PROJECT (CDRRP)

We Aryacom have won this World bank tender and have supplied the following Sea Safety Marine equipments to Tamilnadu Fisheries Department
SI NO Brief Description of Goods Quantity
1 25W VHF Equipment’s for Inshore boats. 2600 Nos.
2 5W VHF Equipment’s for Country Crafts. 18700 Nos.

Need Of The Hour

In order to ensure safety & security of marine fishers while fishing along the Coastal districts of the State Fisheries Dept has to implement the project for Seamless Communication in the Coastal Area of the State ,which comprises of VHF 5 Watts Marine Handheld Transceiver to be given to Traditional fishing crafts and VHF 25 Watts Marine Mobile Tranreceivers Fixed in the Mechanized Boats

PURPOSE:

  • VHF 5 Watts Marine Handheld Transceiver

    To ensure safety and security of the fishermen venturing into the sea for enabling communication between fishermen in sea at times of distress. To know the Weather Forecast report. To enhance the fishermen to get information on fishing locations

  • VHF 25 Watts Marine Shore station Tranreceivers

    To ensure safety and security of the fishermen venturing into the sea for enabling communication between fishermen in sea at times of distress. To direct and inform fellow fishermen the Weather Forecast and communication assistance in case of any emergency situations such as engine breakdown, missing boats /fishermen etc from the shore stations.

  • VHF 25 Watts Marine Mobile Tranreceivers

    To ensure safety and security of the fishermen venturing into the sea for enabling communication between fishermen in sea at times of distress. To know the Weather Forecast report. To enhance the fishermen to get information on fishing locations and inputs on repairs of various parts of boats such as engine, GPS, etc., in case of emergency situations like engine failure, etc from the shore stations

  • VHF 50 Watts Shore station Repeaters

    Is an rack mount repeater with maximum of 50 Watts Power output with unique feature of Continuous duty cycle(100% duty cycle) . These Repeaters are designed with long term reliability in mind and offers unmatched features and performance for all segments of industry and public safety. Automatic DC Power supply backup gives continuous communication. VHF Repeaters not only enhances the Communication range of the Marine handheld and Mobile Transreceivers and enables connectivity from one end of the Coastal shore station to another end seamlessly.

    Aryacom proposes state of the art Marine grade and meet the international Marine standards for Class D for DSC operations to meet the State Fisheries Department Communication requirements.

    Arycom can propose for Seamless Communication equipment includes Supply, Installation, Commissioning, Training,and Handholding to State Fisheries Dept during the Quarterly Inspection for Project maintenance during the Warranty period.

Offered VHF Radio Models

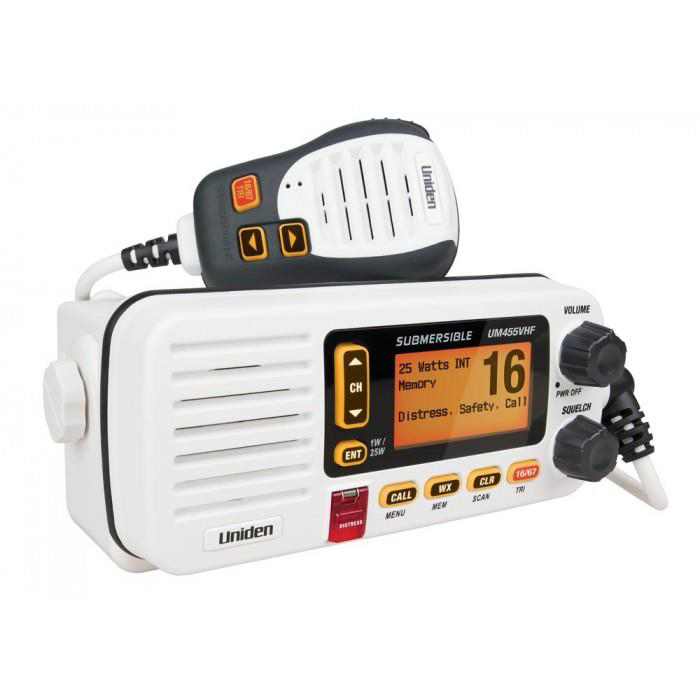

  • Uniden Japan make, VHF Fixed Mount Marine Radio (25 Watts) Radio Model – UM455VHF

    Uniden UM455VHF
    • Transmit Power
      25W/1W Slectable Transmit Power
    • All Marine Channels
      Includes all International Marine VHF, USA and Canada and channels
    • Submersible Housing*
    • Rugged Waterproof Speaker Microphone**
    • DSC Class D Function
    • Full Dot Matrix LCD Display
    • Dual Speakers

      Base and Microphone speakers

    • Design and Engineered in Japan

    Key Features:

    • VHF Marine In-Boat Radio
    • 1 W / 25 W Transmitter Power
    • International Channels
    • Full Dot Matrix LCD Display
    • Submersible Housing*
    • Rugged Waterproof Speaker Microphone**
    • One-Touch Channel 16/67
    • Programmable Memory & Scan
    • DSC (Digital Selective Calling)
    • GPS Input/ Output
    • Volume Control Knob
    • Variable Squelch Level Knob
    • Back-Lit Keys and Display
    • Intuitive Menu
    • Dual Speakers
    • Triple Watch Mode
    • Designed and Engineered in Japan

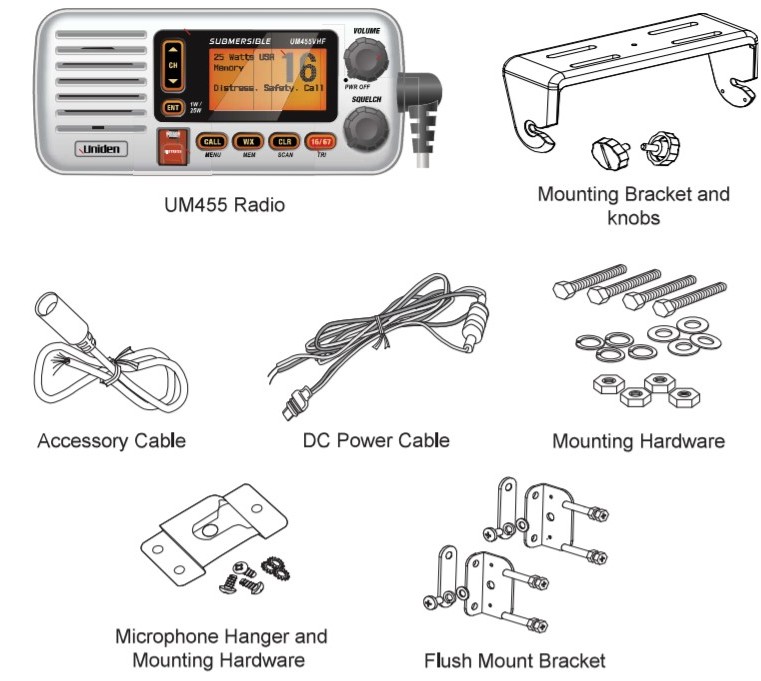

    Included in the Box:



    *Complies with JISB water-resistant standards, which means the radio can be submerged in 1.5 metre of water for 30 minutes without damage.
    **Meets the worldwide JIS7 waterproof specifications; submersible at 1.0 metre depth for 30 minutes.

    Specifications:

    General
    Controls Volume-Pwr, Squelch
    Status Indicators Transmit power, Scan mode, Triple Watch mode,
    Battery High, Battery low, USA, CAN, INT, Memory,
    GPS, Message, Weather band, GPS status and Channel Disalay
    Channel Display LCD (Full Dot Matrix)
    Buttons ENT-1W/25W, Channel UP, Channel DOWN, CALL-
    MENU, WX-MEM, CLR-SCAN, 16/67-TRI,
    DISTRESS, and SCAN/MEM
    Size H 75 mm x W 167 mm x L 129 mm (without Heat Sink)
    H 2.95 inches x W 6.58 inches x L 5.08 inches
    Weight 1.0 kg (2.2 pounds)
    Supply Voltage Nominal 13.8V DC, negative ground
    (1 o.8 voe to 15.6 VDC)
    Standard Accessories Mounting bracket and hardware, microphone hanger
    Antenna Impedance 50 Ω nominal
    Microphone Rugged 2 kΩ condenser mic element with coiled cord
    Speaker 1.77 inch, 8 Ω
    Operating Temperature Range -15 °C to + 55 °C (+5°F to +131 °F)
    Shock and Vibration Meets or exceeds EIA standards, RS152B and RS204C
    FCC Approvals Type accepted under part 80 of the Rules; meets
    Great Lakes Agreement and party boat requirements
    Specifications Subject to Change Without Notice.
    Transmitter
    Power Output 1 watt or 25 watt (user selectable)
    Power Requirement 25 watts output: [email protected] DC
    Modulation ±5 kHz deviation
    Hum and Noise Signal-to-Noise 45 dB@1 kHz with 3 kHz deviation with 1000 Hz modulating frequency (nominal)
    Audio Distortion Less than 8% with 3 kHz deviation with 1000 Hz modulating frequency
    Spurious Suppression -45 dBm@ Hi, -55 dBm@ Lo
    Output Power Stabilization Built-in automatic level control (ALC)
    Frequency Range 156 to 158 MHz
    Frequency Stability ±1.5kHz@ -15°C to + 55°C
    Receiver
    Frequency Range 156 to 163 MHz
    Sensitivity 0.25 µV for 12 dB SINAD (nominal)
    Circuit Dual Conversion Super Heterodyne PLL (Crystal for DSC)
    Squelch Sensitivity 0.2 µV Threshold
    Spurious Response 75 dB (nominal)
    Adjacent Channel Selectivity 78 dB @ ±25 kHz (nominal)
    Audio Output Power up to 4 watts
    Power Requirement 400mA@ 13.8V DC at squelched, 920 mA @ 13.8V DC at maximum audio output
    IF Frequencies 1st 41.925 MHz, 2nd 455 kHz
    (1st 21. 7 MHz, 2nd 455 kHz for DSC)

  • Uniden Japan make, VHF Handheld Marine Transreceiver (5 Watts) Radio Model – MHS245

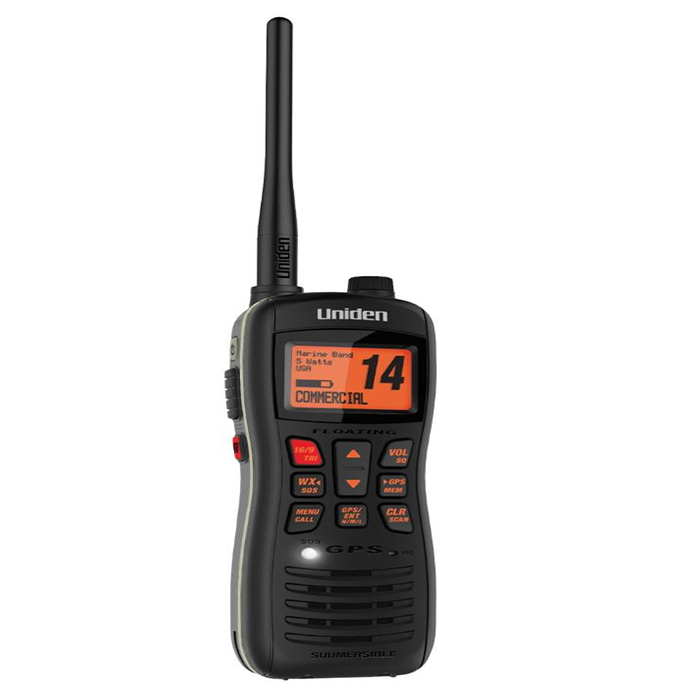

    Uniden MHS245
    • Transmit Power
      5W, 2.5Wand 1W swithable Transmit Power with Transmitter Boost Key
    • All Marine Channels
      Includes all International Marine VHF, USA and Canada and channels
    • DSC Class D Function : with Built-In GPS
    • Rechargeable Lithium Ion Battery
      7.4V, 1160mAh Lithium Ion battery pack
    • Triple Watch/Dual Watch Operation
      These different watch modes let you monitor up to two Coast Guard Distress/Hailing channels along with one regular marine channel
    • Emergency 16/Priority Channel Monitoring
    • Keypad Lock
      Lock the keypad to avoid accidental key presses
    • Design and Engineered in Japan

    Key Features:

    • JIS8/IPX8* Waterproof Marine Radio
    • Submersible and Floating Design
    • Man Overboard Alert (MOB)
    • Compass Screen
    • Strobe SOS Light
    • Temperature Screen
    • DSC Class D Function
    • Transmitter Power Select (1W/2.5W/5W)
    • Battery Level Display & Low Battery Alert
    • Triple Watch/Dual Watch Operation
    • MRN Channels: International, USA and Canadian
    • Emergency 16/Priority Channel Monitoring
    • GPS - Favourite Position Mode
    • Key Lock
    • Selectable Backlight Time
    • Reversible LCD Screen
    • NMEA Input/Output
    • Transmitter Boost Key
    • Instant Channel
    • Memory Scan
    • GPS Status Screen

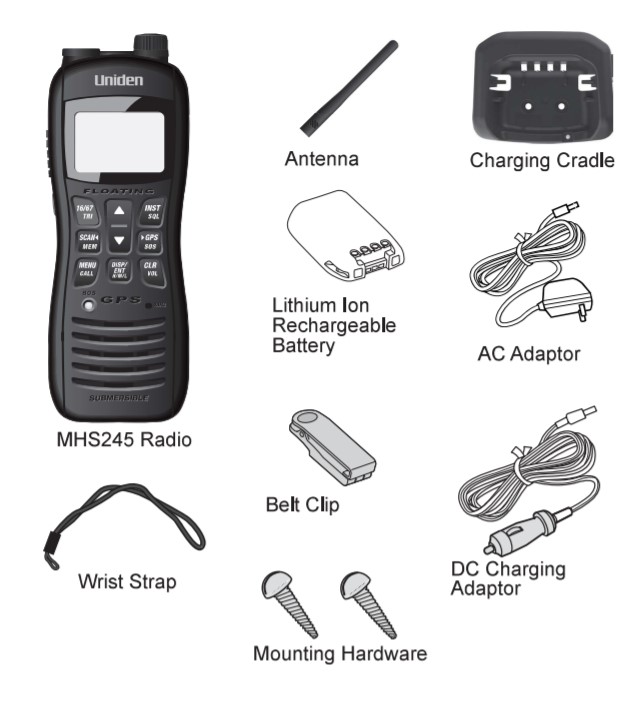

    Included in the Box:

    Optional Accessories

    • External Speaker MIC
    • Alkaline Battery Tray
    *Protected against the effects of continuous immersion in water. The MHS245 can withstand immersion in water up to 1.5m depth for 1 hour.
    Note: This is not suitable for scuba diving.

    Specifications:

    General
    Channels All US/International/Canada marine channels
    5 Weather channels
    Frequency Control PLL
    Operating Temperature -10°C(14° F) to +55°C(+131 ° F)
    Antenna Flexible Whip
    Microphone Built-in Electret type
    Display Liquid Crystal Display
    Speaker 8Ω 1.0 Watt
    Power Source Rechargeable Lithium Ion Battery
    7.4V 1160 mAh
    Size (without antenna) 6.29 (H) x 2.40 (W) x 1.61 (D) inch
    160 (H) x61 (W) x41 (D) mm
    Weight 10.9 oz (309g) (w/battery and antenna)
    Specifications Subject to Change Without Notice.
    Transmitter
    Frequency Range 156.025~157.425 MHz
    Frequency Stability ±2.5 PPM (nominal)
    Power Output 1.0 W & 2.5W & 5W
    Spurious Emissions -40dBm
    Current Drain 1300 mA (5W) nominal
    Receiver
    Type Double Conversion Super Heterodyne
    Phase Locked Loop system for Local Oscillator
    Frequency Range 156.050~162.000 MHz
    Sensitivity 0.25 µV for 12dB SINAD (nominal)
    Squelch Sensitivity Threshold 0.18 µV (nominal)
    Audio Frequency Response +6.0 dB @ 500 Hz; -6 dB @ 2000Hz (nominal)
    Adjacent Channel Selectivity 72dB @ ±25 kHz (nominal)
    Audio Output Power 600mW @10% THD (nominal)
    Current Drain Squelched 65 mA; Max. Audio: 230 mA (nominal)
    Inter Modulation 72dB (nominal)

  • Uniden Japan make, VHF Fixed Mount Marine Radio (25 Watts) Radio Model – UM355VHF

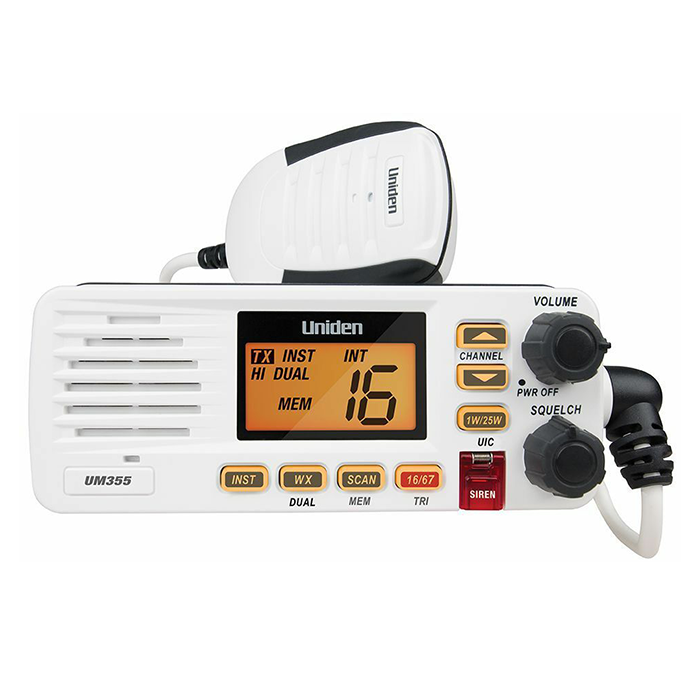

    Uniden UM355VHF
    • Transmit Power
      25W/1W selectable Transmit Power
    • All Marine Channels
      Includes all International Marine VHF, USA and Canada and channels
    • Splashproof
    • Manual Squelch & Volume Control Knobs
    • Programmable Memory & Scan
    • Triple Watch and Dual Watch Operation

      Monitor up to two Coast Guard Distress/Hailing channels along with one regular marine channel

    • Instant Channel Key

      Save a favourite channel to switch to at the press of a button

    • Design and Engineered in Japan

    Key Features:

    • VHF Marine In-Boat Radio
    • Variable Squelch Level Knob
    • International Channel
    • Splashproof*
    • Volume Control Knob
    • Backlit Keys and Display
    • Rugged Splashproof Housing
    • Triple Watch Mode
    • Designed and Engineered in Japan
    • Large LCD Display with Brightness Control
    • One-Touch Channel 16/67
    • 1W/25W Transmitter Power Level Select
    • Programmable Memory & Scan


    * Meets the world standard JIS4 level. Being defined as no harmful influence by receiving a splash of water from any direction.

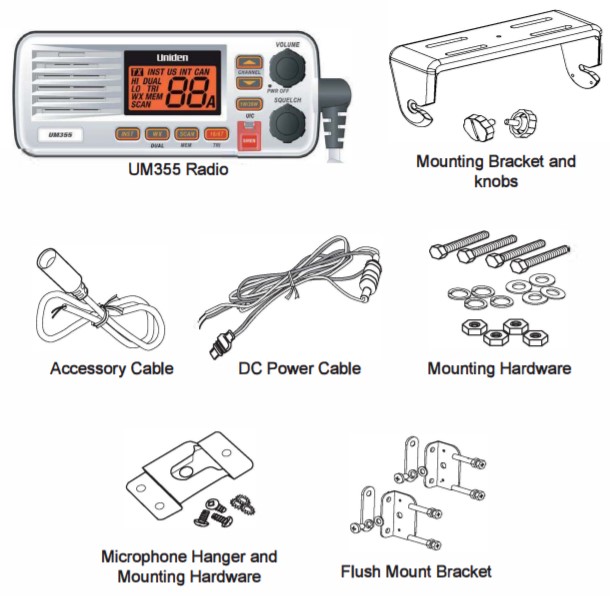

    Included in the Box:

    Specifications:

    General
    Controls Volume-Pwr, Squelch
    Status Indicators Transmit power, Scan mode, Triple Watch mode Dual Watch mode, Battery High, Battery low, USA, CAN, INT, Memory, Message, Weather band
    Channel Display LCD
    Buttons 1W/25W/UIC, Channel UP, Channel DOWN, INST,
    WX-DUAL, 16/67-TRI, SIREN, and SCAN/MEM
    Connectors and Cables Antenna, accessory, and DC power
    Size H 66 mm xW 162 mm x L 128 mm
    H 2.60 inches x W 6.38 inches x L 5.04 inches
    Weight 1.0 kg (2.2 pounds)
    Supply Voltage Nominal 13.8V DC, negative ground
    (10.8 VDC to 15.6 VDC)
    Standard Accessories Mounting bracket and hardware, microphone hanger
    Antenna Impedance 50 Ω nominal
    Microphone Rugged 2 kΩ condenser mic element with coiled cord
    Speaker 1.77 inch, 8 Ω
    Operating Temperature Range -15 °C to + 55 °C (+5°F to +131°F)
    Shock and Vibration Meets or exceeds EIA standards, RS152B and RS204C
    AS/NZS Approvals Type accepted under AS/NZS 4415.2:2003 standard
    Specifications Subject to Change Without Notice.
    Transmitter
    Power Output 1 watt or 25 watt (user selectable)
    Power Requirement 25 watts output: [email protected] DC
    Modulation ±5 kHz deviation
    Hum and Noise Signal-to-Noise 45 dB@1 kHz with 3 kHz deviation with 1000 Hz modulating frequency (nominal)
    Audio Distortion Less than 8% with 3 kHz deviation with 1000 Hz modulating frequency
    Spurious Suppression -45 dBm @ Hi, -55 dBm @ Lo
    Output Power Stabilization Built-in automatic level control (ALC)
    Frequency Range 156 to 158 MHz
    Frequency Stability ±1.5kHz @ -15°C to + 55°C
    Receiver
    Frequency Range 156 to 163 MHz
    Sensitivity 0.25 µV for 12 dB SINAD (nominal)
    Circuit Dual Conversion Super Heterodyne PLL
    Squelch Sensitivity 0.2 µV Threshold
    Spurious Response 75 dB (nominal)
    Adjacent Channel Selectivity 78 dB @ ±25 kHz (nominal)
    Audio Output Power up to 4 Watts
    Power Requirement 230mA @ 13.8V DC at squelched, 440 mA
    @ 13.8V DC at maximum audio output
    IF Frequencies 1st 41.925 MHz, 2nd 455 kHz

  • Uniden Japan make, VHF Handheld Marine Transreceiver (5 Watts) Radio Model – MHS050

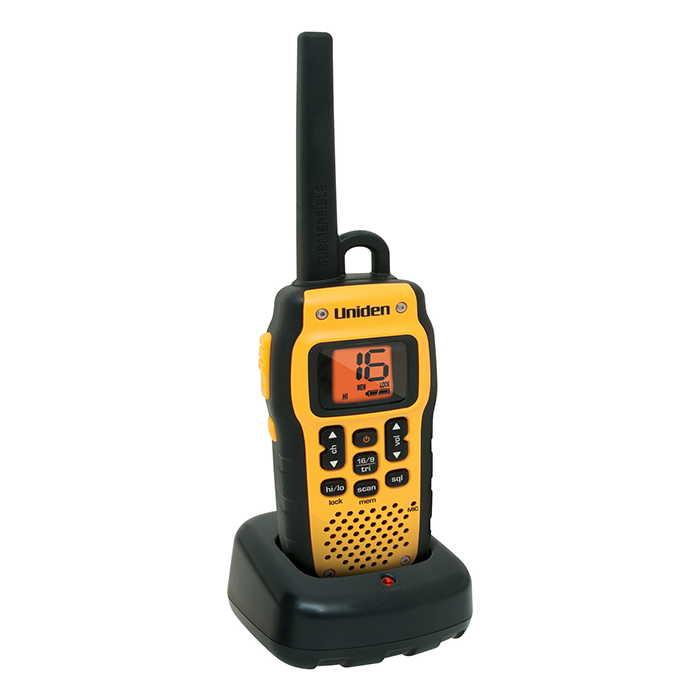

    Uniden MHS050
    • Transmit Power
      1W and 2.5W Maximum Transmit Power vol
    • International Marine VHF Channels
    • Large Backlit Channel Display
    • Triple Watch Mode:

      Monitors Channel 16 and Channel 9 simultaneously for a signal while also monitoring the current channel

    • Designed and Engineered in Japan
    • One-Touch Channel 16/9:

      Toggle access to Emergency Channel 16 or 9

    • Battery Operated:

      Runs on 4.8V 700mAh NiMH rechargeable battery pack with automatic battery save to conserve power when not in use

    • Keypad Lock:

      Lock the keypad to avoid accidental key presses

    Key Features:

    • VHF Marine Radio - 2.5 watt
    • Submersible / Waterproof to JIS8*
    • Floating, Lightweight Design**
    • Carabiner Clip:Attach to the radios hook for secure connection to Optional Belt or Strap
    • TX Power Hi/Lo: 1W and 2.5W Maximum Transmit Power
    • International Marine VHF Channels
    • Large Backlit Channel Display
    • Battery Level Indicator: View the radio frequency signal strength
    • Digital Squelch:Digital Squelch
    • Triple Watch Mode: Monitors Channel 16 and Channel 9 simultaneously for a signal while also monitoring the current channel
    • One-Touch Channel 16/9:Toggle access to Emergency Channel 16 or 9
    • Memory Scan:Allows you to scan the programmed Channels in the memory
    • Allows you to scan the programmed Channels in the memory
    • Battery Save Operation:Allows the MHS050 to automatically save and conserve power when not in use
    • Keypad Lock:Locks the keypad to avoid accidental key presses
    • Designed and Engineered in Japan
    • Dimensions of the Unit: 227mm(H) x 68mm(W) x 33mm(D)

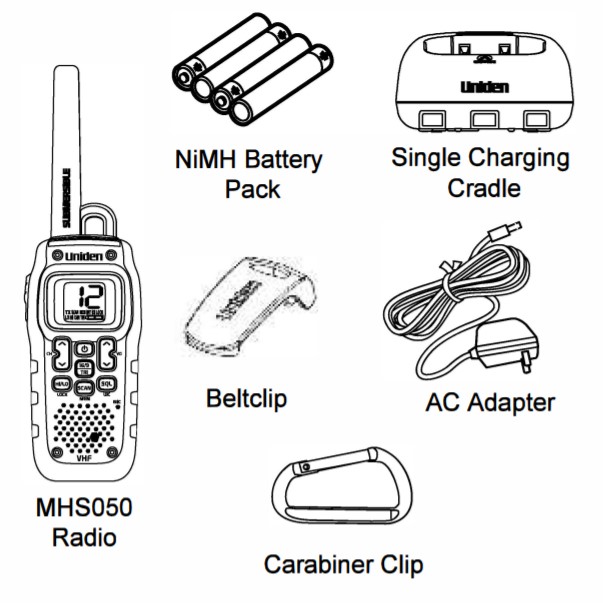

    Included in the Box:



    * Protected against the effects of continuous immersion in water. The MHS050 can withstand immersion in water up to 1.5m depth for 1 hour. Note: This is not suitable for scuba diving. ** The MHS050 will float when the carabiner clip is not connected and the battery cover is securely fastened.

    Specifications:

    General
    Channels All US, International, and Canada marine channels
    Frequency Control PLL
    Frequency Tolerance Transmit: 1.5 PPM (at 25°C)
    Receive: 1.5 PPM (at 25°C)
    Operating Temperature -4°F (-20°C) to +122°F (+50°C)
    Antenna Flexible Whip
    Microphone Built-in Electret type
    Display Liquid Crystal Display
    Speaker 16Ω 0.2 W
    Power Source - Rechargeable NiMH Battery Pack 4.8 V 700 mAh
    Size (without antenna) 8.98 (H) x 2.52 (W) x 1.54 (D) inch
    228 (H) x 64 (W) x 39 (D) mm
    Weight 8.53 oz (242g) (w/battery and antenna)
    Specifications Subject to Change Without Notice.
    Transmitter
    Frequency Range 156 ~ 158 MHz
    Frequency Stability ±2.5 PPM
    Power Output 1.0 W and 2.5 W
    Spurious Emissions -34 dBm on Hi; -39 dBm on Lo
    Current Drain 1100 mA (2.5 W)
    Receiver
    Type Double Conversion Super Heterodyne
    Phase Locked Loop system for Local Oscillator
    Sensitivity 0.20 µV for 12 dB SINA□
    Squelch Sensitivity Threshold 0.12 µV
    Audio Frequency Response +6 dB @ 500 Hz; -6 dB @ 2000 Hz
    Adjacent Channel Selectivity 70 dB @ ±25 kHz
    Audio Output Power 0.16 W @10% THD
    Current Drain Squelched: 55 mA; Max. Audio: 175 mA

  • Uniden Japan make, VHF Marine Radio (5 Watts) – Atlantis 275

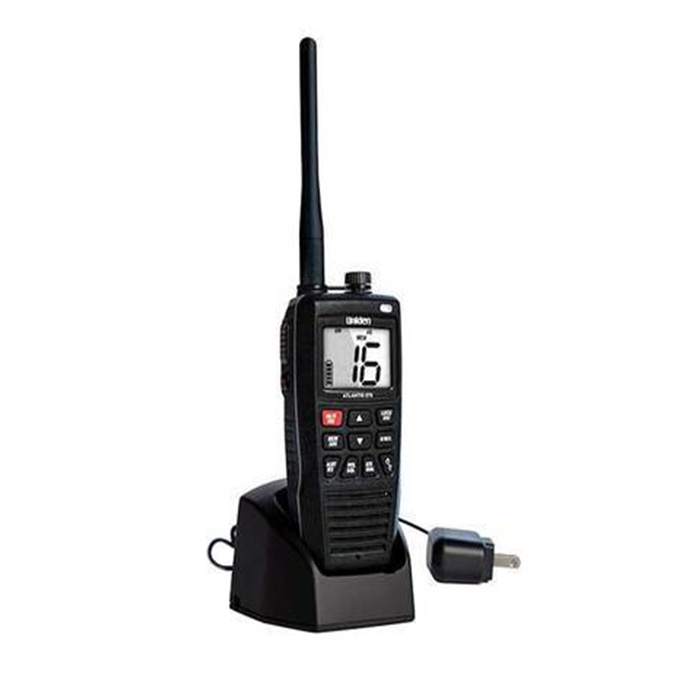

    Uniden Atlantis-275
    • JIS8/IPX8 Submersible Waterproof level + Designed to Float
      So you can use it just about anywhere in any weather condition
    • Transmit Power
      6W, 5W and 1W Switchable Transmit Power
    • Large LCD screen with Backlight and Glow Seals
      User selectable white backlight for day and orange backlight for night
    • Dual and Triple Watch Operation
      These different watch modes let you monitor up to two Coast Guard Distress/Hailing channels along with one regular marine channel.
    • All Marine Channels Includes all International Marine VHF, USA and Canada channels
    • Built in Flashlight with Emergency Strobe Light
      Easy to activate when needed
    • Integrated Lithium Ion Battery
      Built-in 7.4V, 1200mAh Lithium Ion battery pack, including AC Adaptor and charge cradle
    • Designed and Engineered in Japan

    Key Features:

    • JIS8/IPX8* Waterproof Marine Radio
      so you can use it just about anywhere in any weather condition
    • Power Boost - 1/2.5/6W (VHF) Power Boost PTT key
    • Largest LCD in Class
      0mm (h) x 40mm (w) giving clear, easy to read channel numbers and icons
    • Backlit LCD
      User selectable white backlight for day and orange backlight for night.
    • All Marine Channels Includes all USA, Canada, and International Marine VHF channels
    • Large LCD Screen Large, Easy-To-Read Backlit LCD Screen, AC and DC Adapter, Charging Cradle, and Glow Seals Included.
    • Integrated LiON Battery Built-in LiON battery pack, including AC & DC charging cables and charge cradle
    • Transmit Power - 6, 1 and 5.0 Watt Switchable Transmit Power
    • Emergency Strobe Light Easy to activate when needed
    • Dual and Triple Watch Operation These different watch modes let you monitor up to two Coast Guard Distress/Hailing channels along with one regular marine channel.
    • Flashlight Feature Built-in Flashlight

    Optional Accessories

    • DC Adaptor

    Included in the Box:



    *Protected against the effects of continuous immersion in water.
    The Atlantis 275 can withstand immersion in water up to 1.5m depth for 1 hour.
    Note: This is not suitable for scuba diving.

    Specifications:

    General
    Channels AJI US/International/Canada marine channels
    10 Weather channels
    Frequency Control PLL
    Frequency Tolerance Transmit: 1.5 PPM (at 25°C)
    Receive: 1.5 PPM (at 25°C)
    Operating Temperature -4°F (-20°C) to +131°F(+55°C)
    Antenna Flexible Whip
    Microphone Built-in Electret type
    Display Liquid Crystal Display
    Speaker 8Ω 1 Watt
    Power Source Rechargeable Lithium Ion Battery
    7.4V DC 1200 mAh
    Size (without antenna) 5.35 (H) x 2.44 (W) x 1.53 (D) inch
    136 (H) x 62 (W) x 39 (D) mm
    Weight 8.46 oz (240g) (w/battery and antenna)
    Specifications Subject to Change Without Notice.
    Transmitter
    Frequency Range 156.05~161.60 MHz
    Frequency Stability ±10 PPM (nominal)
    Power Output 1.0 W & 2.5W & 6W
    Spurious Emissions 70dBc
    Current Drain 1400 mA (6W)
    Receiver
    Type Direct Conversion Super Heterodyne
    Phase Locked Loop system for Local Oscillator
    Frequency Range 156~164 MHz
    Sensitivity 0.20 µV for 12dB SINAD
    Squelch Sensitivity Threshold 0.2µV (nominal)
    Audio Frequency Response +5.5 dB @ 500 Hz; -6.5 dB @ 2000Hz (nominal)
    Adjacent Channel Selectivity 75 dB @ ±25 kHz
    Audio Output Power 0.7 W @10% THO(nominal)
    Current Drain Squelched:60mA; Max, Audio: 430 mA (nominal)
